gridpack::serial_io::SerialBusIO< _network > Class Template Reference

#include <serial_io.hpp>

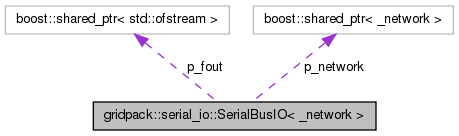

Collaboration diagram for gridpack::serial_io::SerialBusIO< _network >:

[legend]

List of all members.

Public Member Functions
	SerialBusIO (int max_str_len, boost::shared_ptr< _network > network)
	~SerialBusIO (void)
void	open (const char *filename)
boost::shared_ptr< std::ofstream >	getStream ()
void	setStream (boost::shared_ptr< std::ofstream > stream)
void	close ()
void	write (const char *signal=NULL)
void	header (const char *str)
template<class _data_type >
void	gatherData (std::vector< _data_type > &data_vector, const char *signal=NULL)
std::vector< std::string >	writeStrings (const char *signal=NULL)

template<class _network>
class gridpack::serial_io::SerialBusIO< _network >

---

Constructor & Destructor Documentation

template<class _network >

gridpack::serial_io::SerialBusIO< _network >::SerialBusIO	(	int	max_str_len,
		boost::shared_ptr< _network >	network
	)

Simple constructor

Parameters:

	max_str_len	the maximum string length written out by any bus
	network	the network for which output is desired

template<class _network >

gridpack::serial_io::SerialBusIO< _network >::~SerialBusIO

(

void

)

Simple Destructor

References gridpack::serial_io::SerialBusIO< _network >::close().

---

Member Function Documentation

template<class _network >

void gridpack::serial_io::SerialBusIO< _network >::close

(

)

Close file and redirect output to standard out

template<class _network >

template<class _data_type >

void gridpack::serial_io::SerialBusIO< _network >::gatherData	(	std::vector< _data_type > &	data_vector,
		const char *	signal = NULL
	)

This is a function that can use the machinery that has been set up in the serialBusIO class to move data to the head node

Parameters:

vector

of data at the head node (this vector will be empty on all other nodes) character string that can be used to specify which data is being requested

template<class _network >

boost::shared_ptr<std::ofstream> gridpack::serial_io::SerialBusIO< _network >::getStream

(

)

return IO stream

Returns:

IO stream to file

template<class _network >

void gridpack::serial_io::SerialBusIO< _network >::header

(

const char *

str

)

Write single string to standard output. This is used to write headers for a data listing. It is mostly a convenience function so that users do not have to identify the head node

Parameters:

str

character string containing the header

template<class _network >

void gridpack::serial_io::SerialBusIO< _network >::open

(

const char *

filename

)

Redirect output to a file instead of standard out

Parameters:

filename

name of file that output goes to

References gridpack::serial_io::SerialBusIO< _network >::close().

template<class _network >

void gridpack::serial_io::SerialBusIO< _network >::setStream

(

boost::shared_ptr< std::ofstream >

stream

)

Set IO stream to point to existing file

Parameters:

IO

stream to file

template<class _network >

void gridpack::serial_io::SerialBusIO< _network >::write

(

const char *

signal = NULL

)

Write output from buses to standard out

Parameters:

signal

an optional character string used to control contents of output

template<class _network >

std::vector<std::string> gridpack::serial_io::SerialBusIO< _network >::writeStrings

(

const char *

signal = NULL

)

Write output from buses to a vector of strings

Parameters:

signal

an optional character string used to control contents of output

Returns:

vector of strings containing output strings

---

The documentation for this class was generated from the following file:

• serial_io.hpp
